Specifications

Type : 12VDC

Leads : 12 AWG, 6” long, Weatherpack Tower Connectors

Liquid Temperature : 140° F  (60° C) Max.

Priming Capabilities : 14 ft. (4m)

Max Pressure : 100 PSI (6.8 bar)

Inlet/Outlet : ½” FNPT

Dimensions

Dimensions : 5.32 x 4.75 x 8.2 in.

Weight : 10 lbs

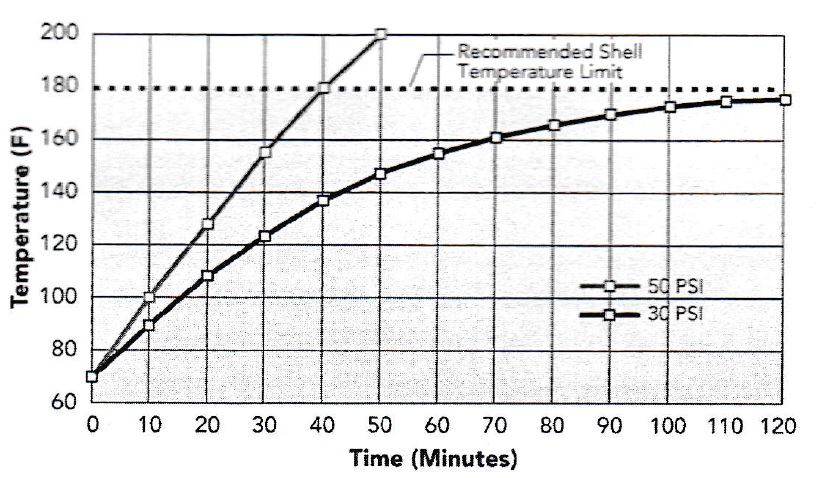

Heat Rise Chart

                ** Motor is not equipped with thermal protection. For user safety, optimal performance

                and maximum motor life, the motor surface temperature should not exceed 180°F (82°C)

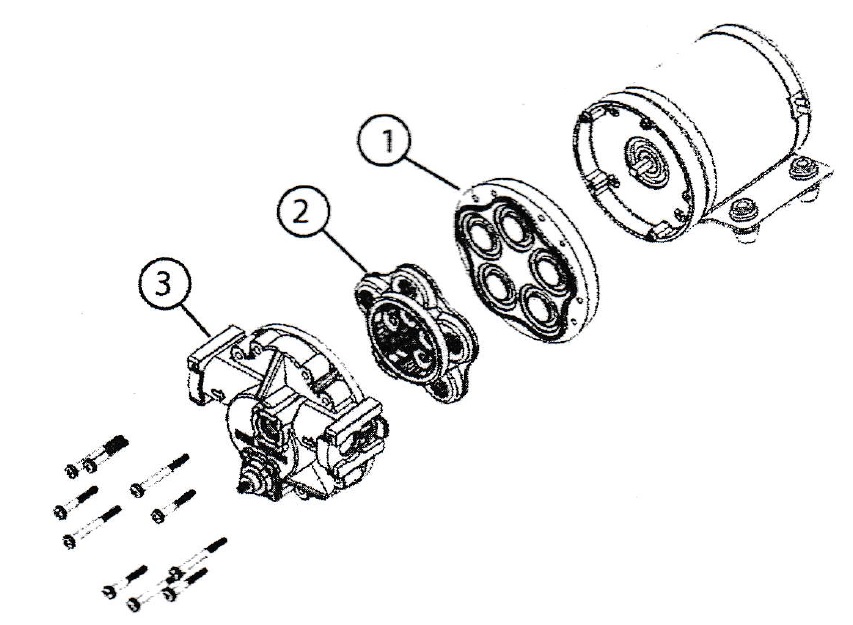

Parts Breakdown
