The following information is collected from manufacturer's official website. We do our best to keep it up-to-date

Specifications

Type : 12VDC

Leads : 14 AWG, 12” long, Weatherpack Tower Connectors

Liquid Temperature : 140 °F (60 °C) Max.

Priming Capabilities : 14 ft. (4m)

Maximum Pressure : 60 PSI (4 bar)

Inlet/Outlet : Quick Attach

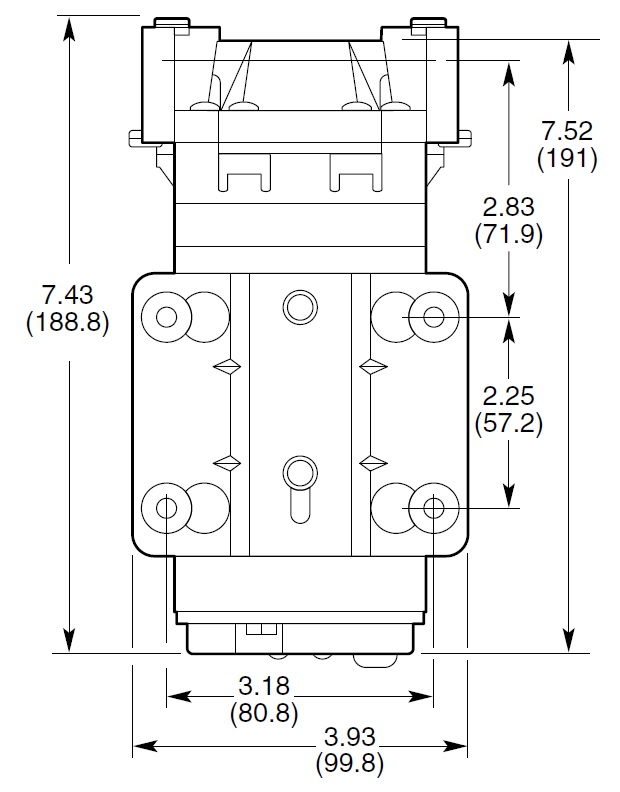

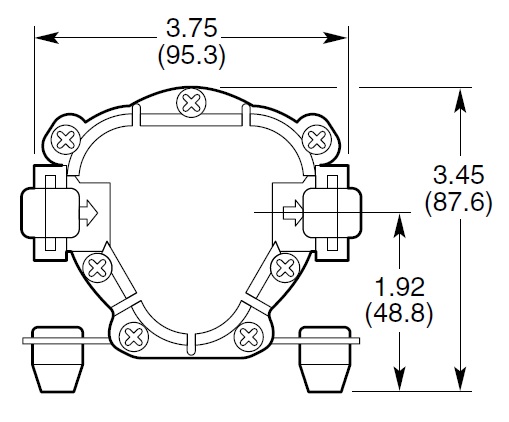

Dimensions

Dimensions : 3.75 x 3.45 x 7.43 in.

Weight : 5.15 lbs

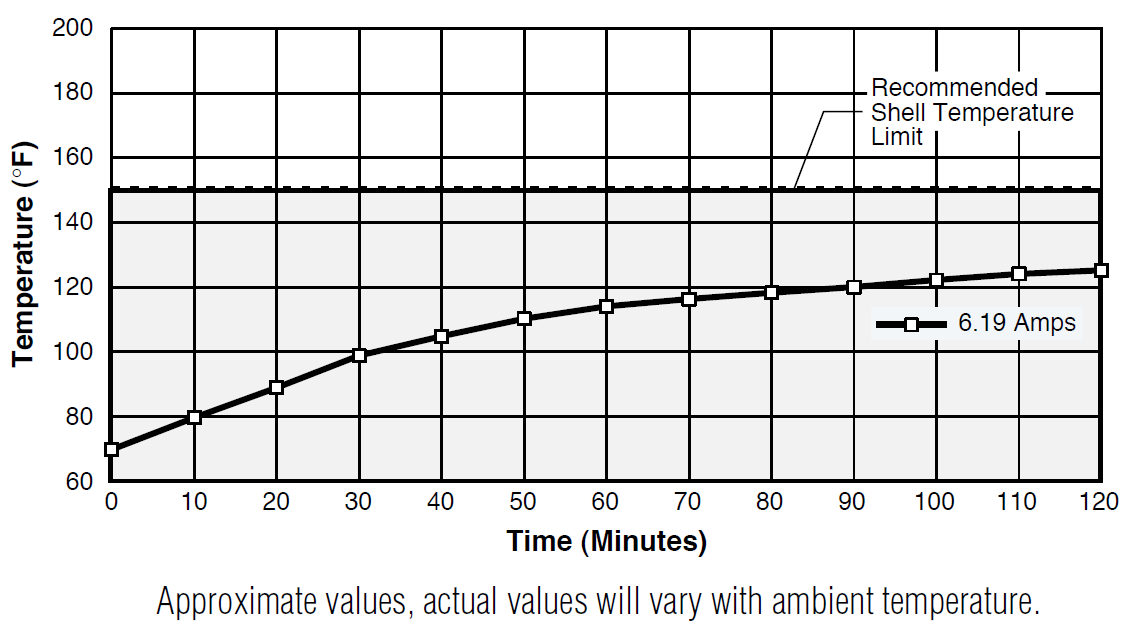

Heat Rise Chart

                        ** Motor is not equipped with thermal protection. For user safety, optimal performance

                        and maximum motor life, the motor surface temperature should not exceed 150°F (66°C)

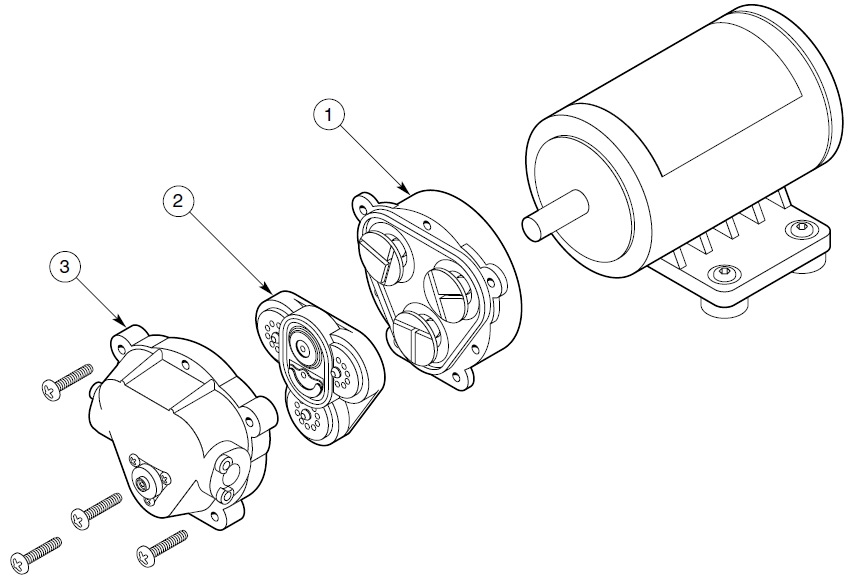

Parts Breakdown

Related Parts

Repair Kit - Lower Housing : Part# 15659

Repair Kit - Valve Assembly : Part# 15663

Repair Kit - Valve Assembly : Part# 15788
