The following information is collected from manufacturer's official website. We do our best to keep it up-to-date
Pump
Type: 4-Roller design
Max Flow : 9.2 GPM
Max Pressure: 150 PSI (10.3 bar)
Max Recommended Temperature: 140°F (60° C)
Port Size: 3/4” FNPT
Mounting: Base Mounted: 5/16 -18 UNC-2B (2 holes)
Shaft Size: 5/8” solid shaft
Shaft Rotation: CW (standard)
(Shaft rotation is determined when looking at shaft end of pump)
Materials of Construction
Housing: Stainless Steel Diamond Series™
Rollers: 1/2” Ultra rollers (standard)
Shaft Seals: Viton cartridge type lip seals
Seal Ring: Viton
Bearings: Permanently-lubricated, heavy-duty sealed bearings

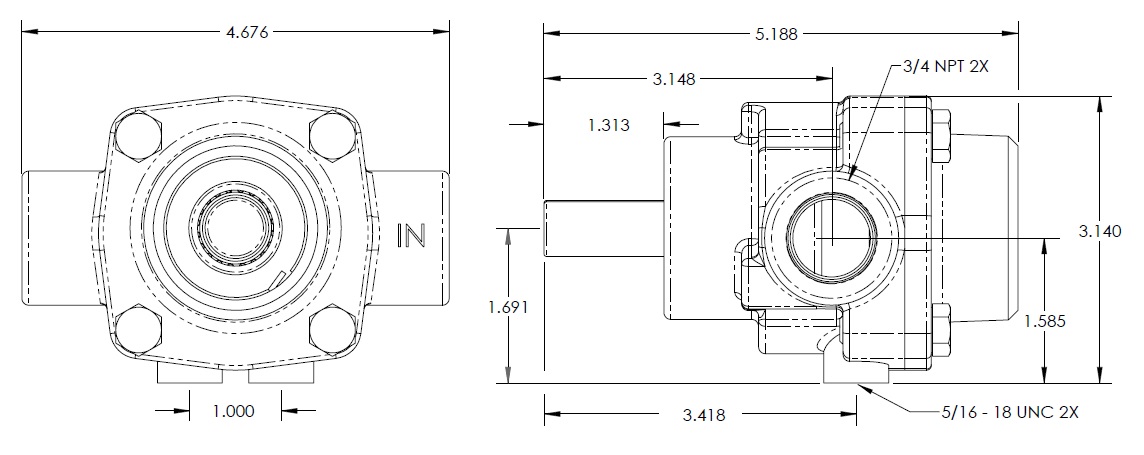

Dimensions
Dimensions : 4.676 x 3.140 x 5.188 in.
Weight : 5 lbs

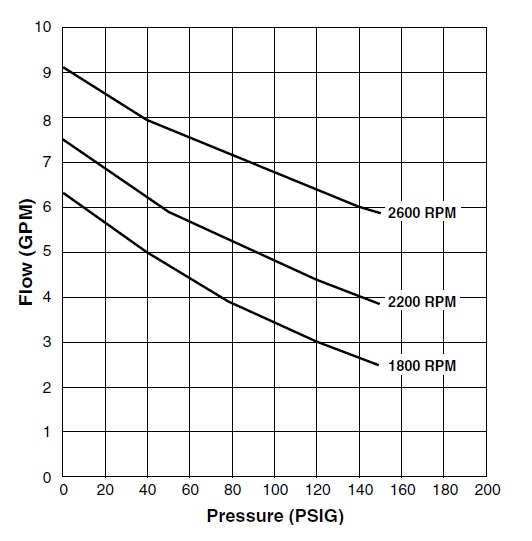

Flow / Pressure Chart
Flow
PSI | 1800 RPM | 2200 RPM | 2600 RPM |
0 | 6.3 | 7.7 | 9.2 |
20 | 5.8 | 6.9 | 8.5 |
40 | 5.0 | 6.2 | 7.9 |
60 | 4.4 | 5.6 | 7.5 |
80 | 3.8 | 5.2 | 7.2 |
100 | 3.3 | 4.8 | 6.8 |
Related Parts : Repair kit - Delavan roller pump 4900 Series repair kit

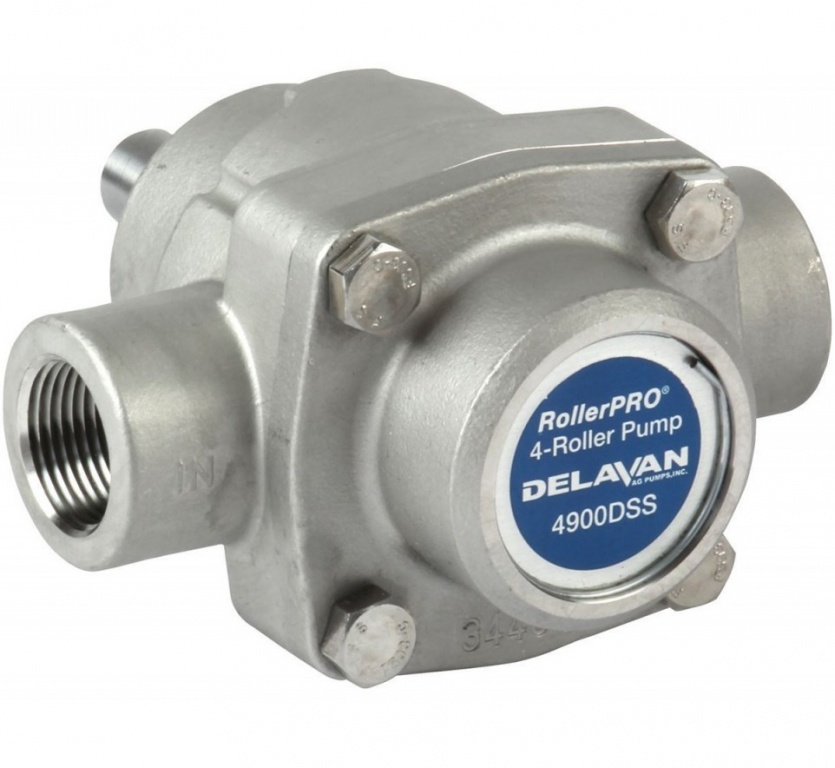

Delavan 4900 Series Roller Pump 4900DSS
- Brand: Delavan
- Product Code: 14223
- MPN: 4900DSS
- Availability: 2-3 Days
-
USD $424.21
