Specifications

Type : 12VDC

Leads : 14 AWG, 12” long, Weatherpack Tower Connector

Liquid Temperature : 140° F  (60° C) Max.

Priming Capabilities : 14 ft. (4m)

Max Pressure : 60 PSI (4 bar)

Inlet/Outlet : 3/8” FNPT

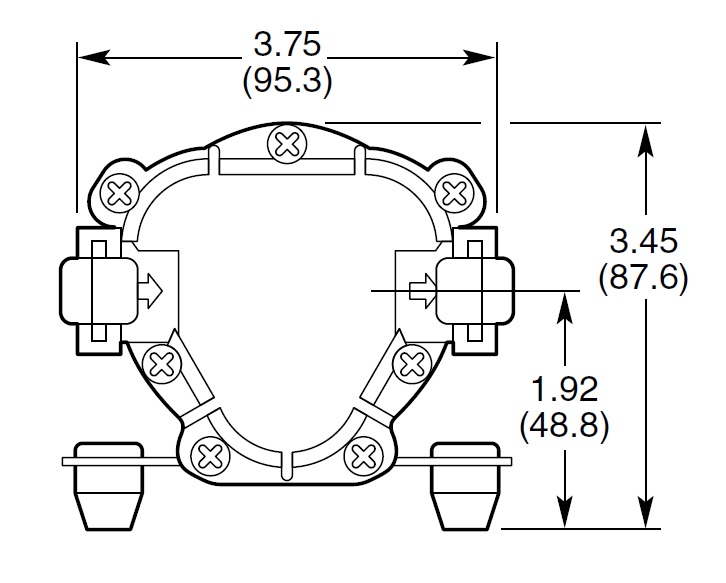

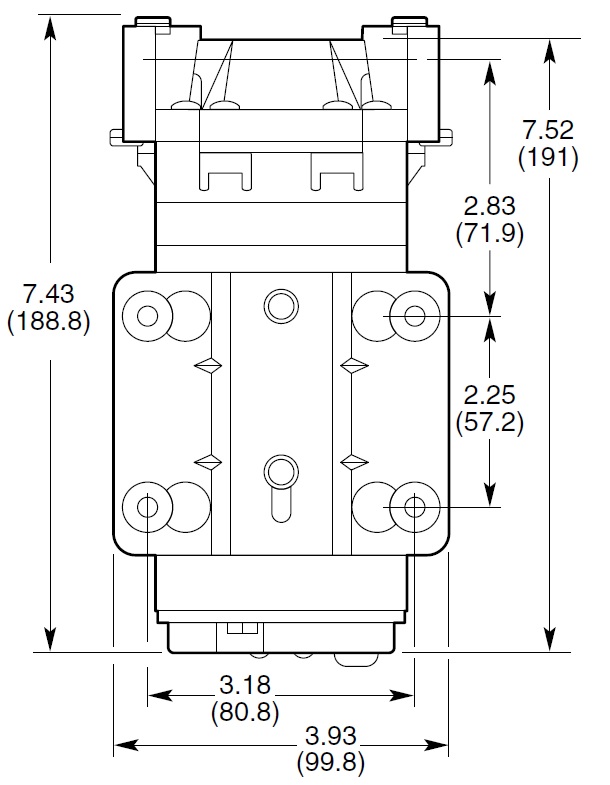

Dimensions

Dimensions : 3.45 x 3.75 x 7.43 in.

Weight : 5.2 lbs

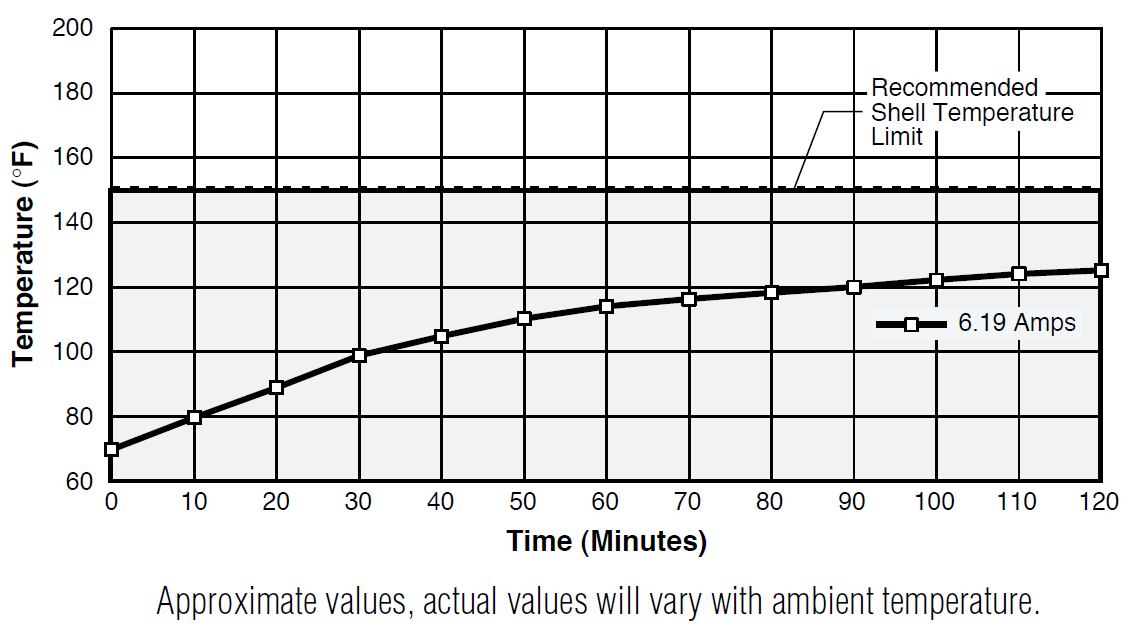

Heat Rise Chart

                                ** Motor is not equipped with thermal protection. For user safety, optimal performance

                                and maximum motor life, the motor surface temperature should not exceed 150°F (66°C)

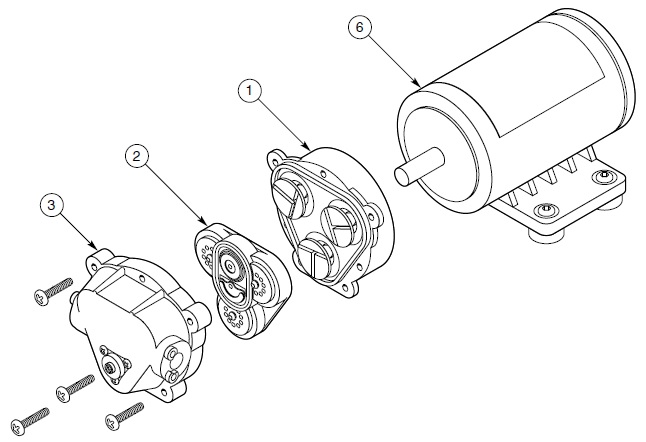

Parts Breakdown
