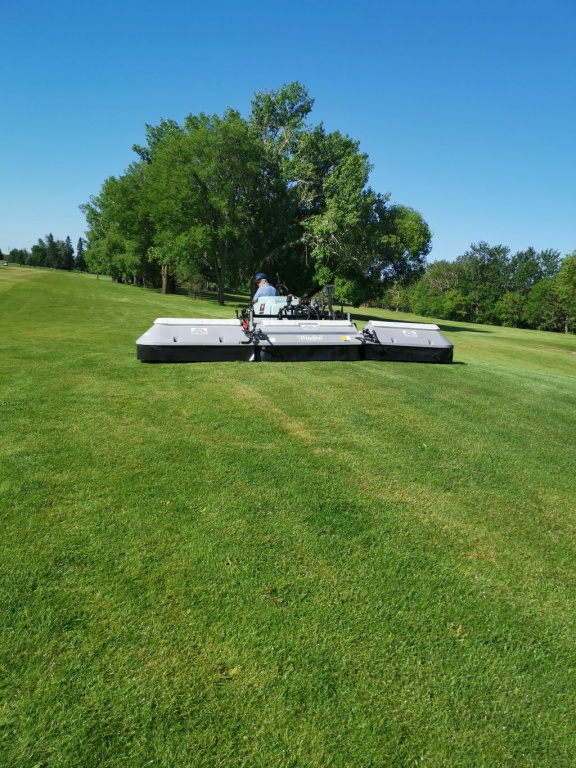

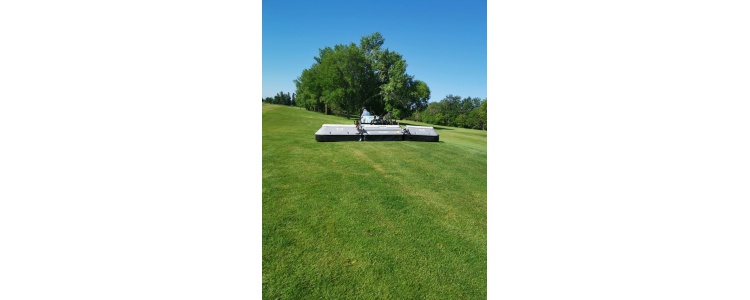

The GF Series is the ultimate in covered boom spraying technology. It has been redesigned to follow the contours of your turf better than ever. All new models are now made grey in colour with blue and white decaling.

The GF Series has been designed to work with YOUR sprayer. Without leaving the seat of your vehicle, you can raise and lower the wings and centre section of your boom using the four linear actuators system. Be sure to check out the video section to see the GF in action.

Specifications:

·         Designed to retrofit to virtually any sprayer

·         Rust-proof aluminum and polyethylene construction

·         Powder coated and Zinc Dichromate coated steel parts

·         Adjustable boom height

·         Excellent ground follow and float

·         Boom float/travel +/- 10" above/below level

·         20psi check valve nozzle bodies with 1/4 turn caps, ensures spray stops when the unit is turned off

·         Standard triplex bodies

·         Durable long lasting ceramic insert tips

·         Castor wheels in front of spray to mitigate tracking

·         10 inch “No Flat”  foam tires w/greaseable bearings

·         Non rusting poly rims

·         Curtain hanger molded into shroud

·         40-45 oz. non-absorbent drift sealing curtain

·         Wing breakaway protection

·         Nylon sleeve hinge points

·         Easy to see visual flow indicators for each individual tip

·         4 actuator electric fold system

·         Completely folds off ground for transport

·         Folds to 120 inch width for transport with wheels, 100 inch without

·         Weight - 380 lbs/160 kg

Optional Accessories:

14479   4galFoam Marker Kit

14478   1galFoam Marker Kit
