Specifications
Type : 12VDC
Leads : 14 AWG, 12” long
Liquid Temperature : 140° F (60° C) Max.
Priming Capabilities : 14 ft. (4m)
Max Pressure : 60 PSI (4 bar)
Inlet/Outlet : Quick Attach
Dimensions
Dimensions : 4.84 x 4.58 x 9.95 in.
Weight : 6.35 lbs
Heat Rise Chart
** Motor is not equipped with thermal protection. For user safety, optimal performance
and maximum motor life, the motor surface temperature should not exceed 180°F (82°C)
Parts Breakdown
|
Parts Description |
Rogers Sprayers Part# |
|
|
1 |
5950 Lower Housing |
|
|
2 |
5950 Valve Assembly |
|
|
3 |
5950 Upper Housing |
The information is collected from manufacturer's official website. We do our best to keep it up-to-date

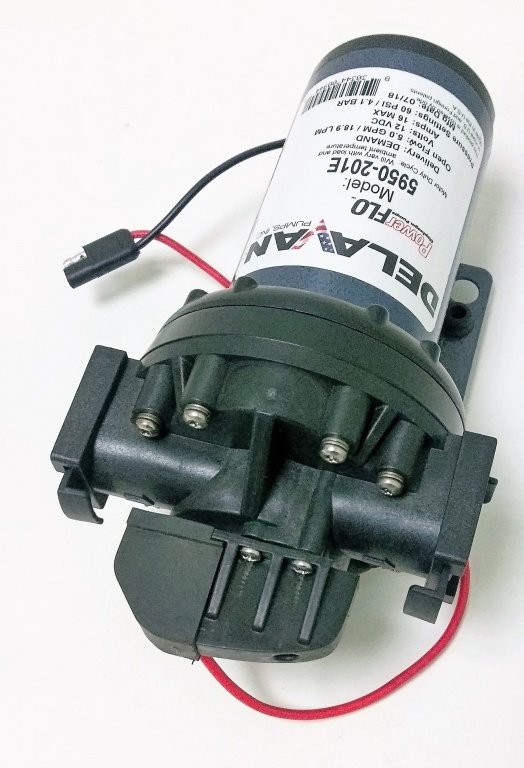

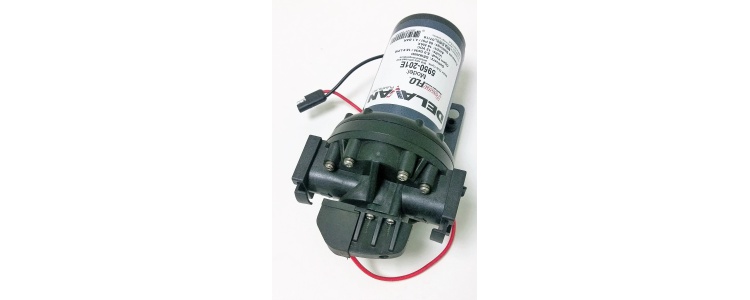

Delavan Powerflo 5950-201E Pump 12VDC (demand)
- Brand: Delavan Pumps
- Product Code: 15902
- MPN: 5950-201E
- Availability: In Stock
-
USD $258.77
