Pump

Type: 6-Roller design

Max Flow: 22.8 GPM

Max Pressure: 200 PSIG (20 bar)

Max Recommended Temperature: 140°F (60° C)

Port Size: 3/4” NPT

Shaft Diameter: 5/8”

Shaft Rotation: CCW (standard)

(Shaft rotation is determined when looking at shaft end of pump)



Materials of Construction

Housing: Cast Iron

Rollers Diameter : 11/16"

Shaft Seals: Viton cartridge type lip seals

Seal Ring: Viton

Shaft and Rotor : 410 stainless steel shaft/overmolded rotor

Bearings: Permanently-lubricated, heavy-duty sealed bearings

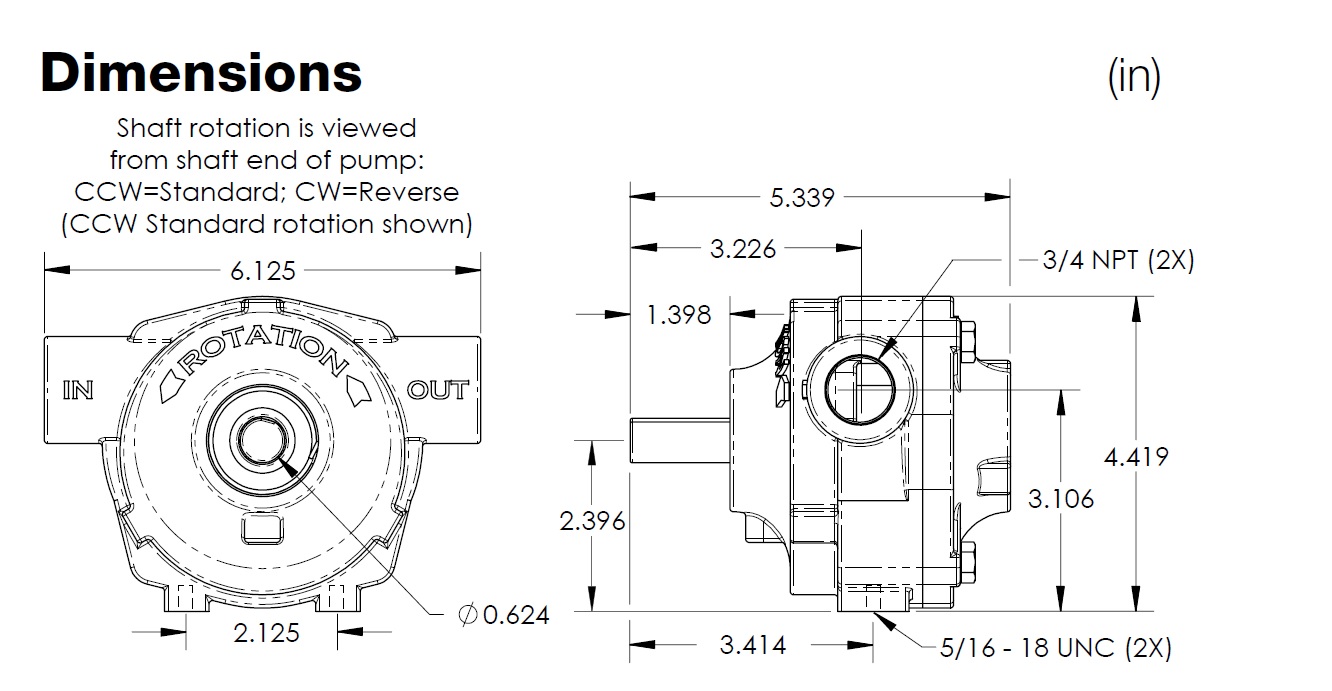

Dimensions

Dimensions : 6.125 x 5.339 x 4.419 in.

Weight : 9 lbs

Flow / Pressure Chart

Related Parts : Repair kit - Delavan roller pump 6900 repair kit
