Specifications
Model : 5950-104E
Type : 115VAC
Liquid Temperature : 140° F (60° C) Max.
Priming Capabilities : 14 ft. (4m)
Max Pressure : 60 PSI (4 bar)
Inlet/Outlet : Quick Attach

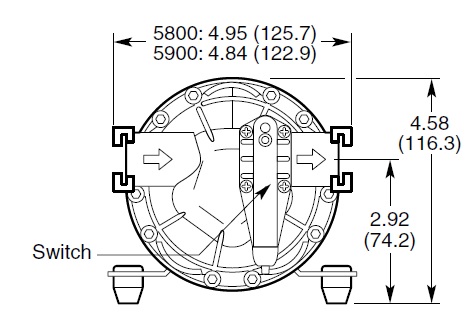

Dimensions
Dimensions : 4.84 x 4.58 x 9.95 in.
Weight : 8 lbs

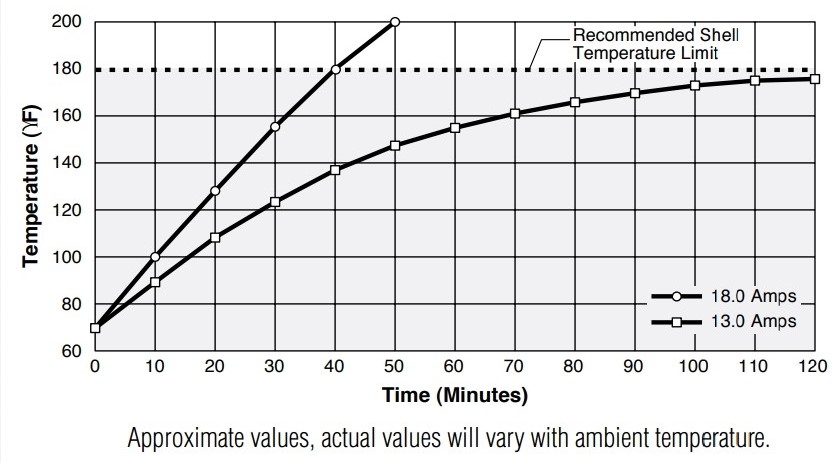

Heat Rise Chart
** Motor is not equipped with thermal protection. For user safety, optimal performance
and maximum motor life, the motor surface temperature should not exceed 180°F (82°C)

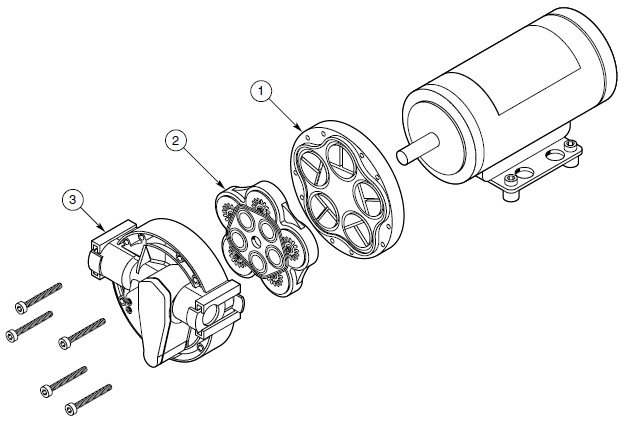

Parts Breakdown
|
Parts Description |
Rogers Sprayers Part# |
|
|
1 |
5950 Lower Housing |
|
|
2 |
5950 Valve Assembly |
|
|
3 |
5950 Upper Housing |
The information is collected from manufacturer's official website. We do our best to keep it up-to-date

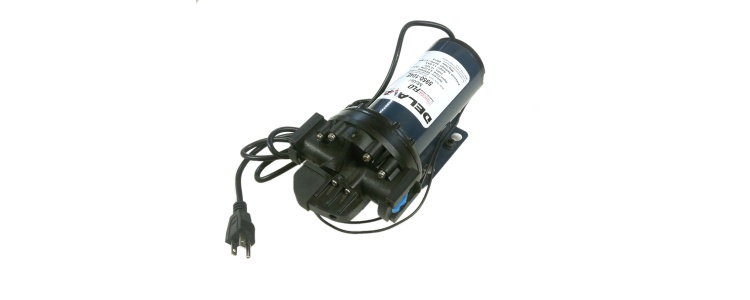

Pump 120V DEL 5950 Series 5950-104E
- Brand: Delavan Pumps
- Product Code: 15986
- MPN: 5950-104E
- Availability: In Stock
-
USD $310.17
